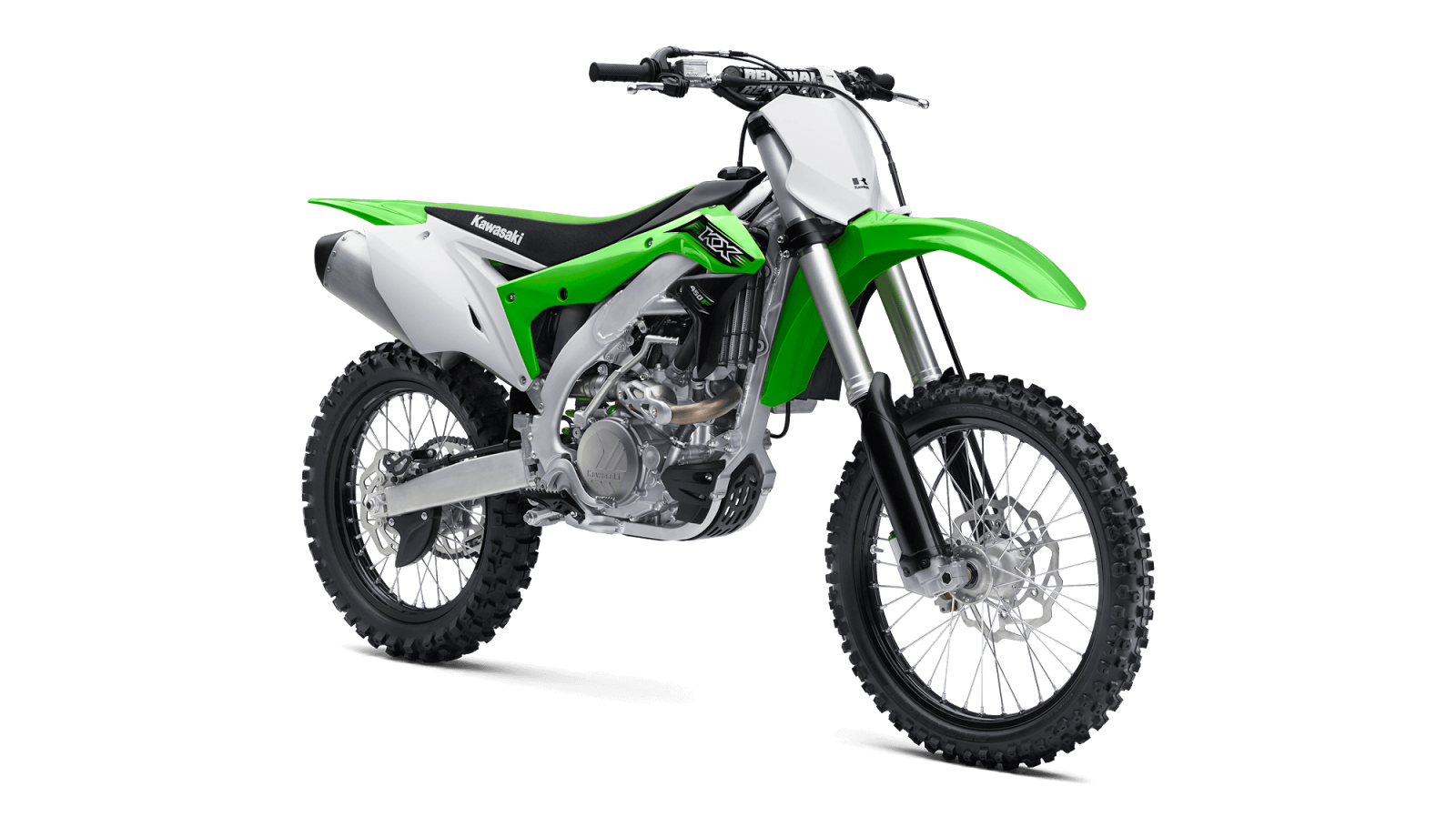

Kawasaki has revised for the new model year, the 2016 Kawasaki KX450F neat and upgraded.
2016 Kawasaki KX450F Engine
The updates are broad and begin with new motor cases to spare weight while upgrading the configuration to build quality and unbending nature. The area of the oil forager pump was likewise changed, swapping from the left case to the right case. The barrel head overhauls incorporate corrections to the admission ports, which are less bended than some time recently, enhancing mid-high RPM execution and over-rev. The admission port centers are additionally given an extraordinary covering amid the head throwing procedure to make the ports smoother. The greatly smooth surfaces and modified port shape expand the admission effectiveness and execution at all RPM.
The 36mm titanium intake valves have an amended head range. The new plan, with slimmer throat edge and diminished break (like valves on Kawasaki supersport motors) adds to expanded high-RPM execution. Reexamined admission cam timing (propelled 2-degrees) adds to better low-RPM execution, while the camshaft is 0.5 oz lighter than some time recently. Another admission camshaft sprocket is 0.7oz lighter.
The single chamber is balance (8.5mm forward) to lessen mechanical misfortune through rubbing from the cylinder development, empowering more effective influence era. This required a reexamined crankshaft shape, comparing to the modified crankshaft lodging. The crankshaft balancer shape was additionally changed – lessening its size and helping it by 1.9 oz.
Further upgrades were made to the crankshaft balancer drive apparatus and driven rigging, bringing about a joined diminishment of 1.4 oz.
Another crown plan for the Bridged-Box base cylinder is in light of the AMA industrial facility race bicycles and matches the new intake valve shape and adding to the 12.8:1 pressure proportion. Another expansion for 2016 is the upgraded air box, which gets rid of any steel parts, bringing about a weight reserve funds of 8.8 oz. It likewise uses new underseat intakes at the back of the seat. These and the modify state of the air box help to guarantee clean wind stream, enhancing motor reaction and diminishing intake sound to meet nearby market necessities.
Changes were made to the throttle to lessen vibration. This brought about another minimal fuel injector being utilized. The external piece of the fuel pump was additionally overhauled, changing the spine position so as to bring down the fuel tank position, adding to the bike's general lower focus of gravity.
Further updates incorporate another fumes framework. It begins with another header outline that elements a resonator to enhance low RPM power and help lessen the sound level. Another weight sparing measure saw 9.2 oz trimmed from the transmission adapts and shafts, which hold their general quality while adding to the cruiser's dynamic execution. At last, the state of the kickstarter has modified, bringing about a sparing of 2.6 oz.
2016 Kawasaki KX450F electronics
The well known DFI couplers are again accessible for the Digital Fuel Injection framework. Three are supplied with every motorcycle and permit the riders to rapidly change the fuel infusion mapping to suit any riding condition. The four-pin DFI couplers are intended for standard, hard or delicate landscape settings. The rider basically interfaces the suitable coupler top to suit the track conditions and the DFI couplers quickly initiate an ignition mode to match.
The KX450F motorcycle's Launch Control System is another prevalent component. The push-catch actuation impedes ignition timing in first and second riggings, serving to expand footing off the line. Once the rider shifts into third, typical ignition mapping is continued and full power returns.

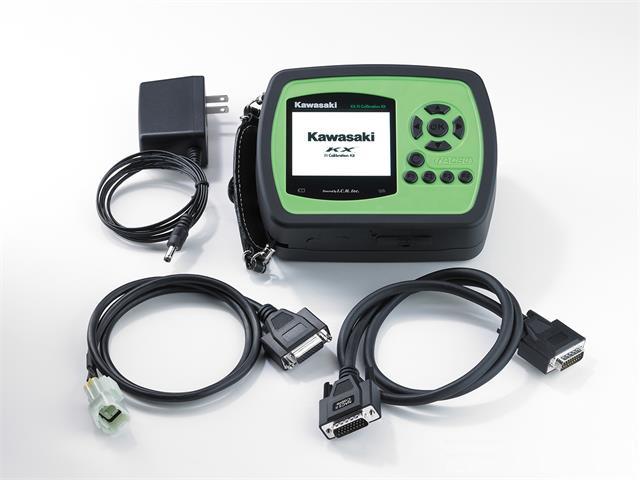

As a further advantage of owning a KX450F motorcycle, the motor ECU remains completely programmable on account of the new handheld Kawasaki Accessory KX FI Calibration Kit. This compact gadget permits custom maps to be made giving riders exact conformity of fuel and ignition settings. This new handheld module dispenses with the requirement for a trackside Tablet. It can put away to seven preset maps and is PC-compatible.
2016 Kawasaki KX450F Chassis
The KX450F highlights an all-new casing. The edge fights are 6mm slimmer than the past casing, permitting simpler rider development. It is likewise lighter by 1 lb, while the subframe (seat rails) has thicker dividers for expanded quality. General inflexibility has been enhanced with another swingarm (while losing 7.8 oz simultaneously), helping back wheel footing and rider feel.
The combination swingarm has a cast front segment and twin decreased hydro-shaped fights in a crude aluminum wrap up. Manufactured chain agents are likewise fitted with a self-locking back hub nut. The pivot nut holds the 80 lb-ft torque setting without the need of a cotter pin for simplicity of upkeep at the track. Taking after broad motor and chassis amendments, the 2016 Kawasaki KX450F motorcycle has seen a critical 7.5 lb decrease in check weight (counting liquids), giving it an aggregate weight of 239.6 lb.
Weight funds from the motor gathering (counting intake and fumes frameworks) added up to give or take 4.4 lb, with investment funds from chassis parts totalling more or less 3.1 lb. A percentage of the real contributing part weight investment funds include:
• crankcases (left/right) – 13 oz.
• transmission – 9.2 oz.
• air filter– 8.8 oz.
• outline – 14.1 oz.
• suspension (front/back) – 10.9 oz.
• swingarm – 7.8 oz.
2016 Kawasaki KX450F Bodywork and Seat
The 2016 KX450F motorcycle gets all-new bodywork with forceful styling. The moderate bodywork is light and elements precise styling for the new number plates, covers, bumpers, slip plate and water pump protect. The new bodywork binds together the radiator cover and side spreads for a smoother, consistent rider interface that is 1.2" slimmer at the largest point, and permits whole development around the motorcycle. The radiator was reshaped with a specific end goal to accomplish this, making a vee-shape and permitting the covers to be slimmer. The highest point of the fuel tank is lower than some time recently, permitting simpler movement from the seat to the tank. The compliment configuration gives the rider more prominent opportunity of development when changing riding position, while additionally permitting the rider to sit further forward.
Forceful styling for the new front bumper adds to the motorcycle's general scandalous appearance furthermore spares 1.8 oz in weight general the past model year.
2016 Kawasaki KX450F Suspension and Brakes
The Showa SFF-Air TAC (Separate Function front Fork, Triple Air Chamber) fork innovation isolates the damping and stun assimilation obligations into the individual fork legs. The left fork tube contains the damping gathering and the right fork tube contains the air spring. Rather than the steel loop springs found in routine forks, the SFF-Air TAC's correct fork tube has three chambers loaded with pressurized air that go about as a "spring". Taking out the steel curl springs decreases erosion by pretty nearly 20% and makes a to a great degree smooth activity all through the fork's stroke. This has the included advantage of enormously decreasing weight and permitting a bigger damper cylinder to be utilized, giving smoother activity. Amazing failure grinding fork seals and reexamined valve settings for decreased damping convey simpler fork development, coordinating the pitching attributes to the lighter chassis.
The fork has conventional 22-position pressure and 20-position bounce back damping change. Besides, the rider can conform the inward gaseous tension with the Kawasaki Genuine Accessories 0-300 psi Digital Air Pump that is supplied with the KX450F motorcycle. Changing the gaseous tension covers a scope of settings offered by discretionary springs in a standard fork, including speedy changes of ride stature, without expecting to dismantle the fork tubes. The pump's advanced showcase offers exact gaseous tension setting, and its packaging stores the motor's DFI couplers for the fuel infusion framework, permitting better association on practice or race days.
New linkage proportions for the Kawasaki suspension framework were intended to suit the new aluminum outline and swingarm. Mounting the connection underneath the swingarm permits a more extended back suspension stroke, while keeping up a low seat tallness. Double pressure movability from the Showa stun permits rapid and low-speed damping rates to be set independently. The stun repository has a rubbing lessening inside Kashima Coat for enhanced suspension activity.
The 2016 Kawasaki KX450F motorcycle utilizes a larger than average 270 mm, petal-molded front brake rotor from the eminent producer, Braking. It aides give capable ceasing powers, great lever feel and consistency in all conditions. It is matched with a 240 mm petal-formed Braking rotor on the back.
2016 Kawasaki KX450F Flexibility
The footpegs highlight double position mounting focuses, with a lower position, which diminishes the range from the standard position by an extra 5 mm. The lower position adequately brings down the focal point of gravity when standing, and diminishes knee edge when situated.
The handlebars offer 4-way movable mounts. With 35 mm of extent, the multi-position handlebars highlight two mounting openings, and the 180-degree balance braces give four individual settings to suit diverse size riders.
A price for the new 2016 Kawasaki KX450F in USA :
MSRP $8,799
DESTINATION CHARGE $345 †
Dealer sets the genuine destination charge, your value may differ.
2016 Kawasaki KX450F Specs :
Engine: 4-stroke, 1-cylinder, DOHC, water-cooled
Displacement: 449cc
Bore x Stroke: 96 x 62.1mm
Compression Ratio: 12.8:1
Fuel System: DFI with 43mm Keihin throttle body
Ignition: Digital DC-CDI
Transmission: 5-speed
Final Drive: Chain
Frame Type: Aluminum perimeter
Rake/Trail: 28° / 4.9”
Fuel Capacity: 1.66 gal.
Front Suspension / Wheel: Travel 49mm Inverted Showa SFF-Air TAC Separate Function front Fork w/ Triple Air Chamber, DLC coated sliders, 22-position compression and 20-position rebound damping adjustment / 12.2”
Rear Suspension / Wheel: Travel Uni-Trak linkage system and Showa shock, 19-position low-speed and 4-turns high-speed compression damping, 22-position rebound damping and fully adjustable spring preload / 12.4”
Tire Size, Front: 80/100-21
Tire Size, Rear: 120/80-19
Brakes, Front: Single semi-floating 270mm Braking petal-style disc with dual-piston caliper
Brakes, Rear: Single 240mm Braking petal-style disc with single-piston caliper
Overall Length: 86.4”
Overall Width: 32.3”
Overall Height: 50.8”
Ground Clearance: 13.6”
Seat Height: 37.8”
Curb Weight (claimed): 239.6 lb
Wheelbase: 58.9 in.
Fuel Capacity: 1.66 gal.
Color: Lime Green
